Jodel D 11's of New Zealand (1)

The venerable Jodel D 11 was designed by Eduard Joly and Jean Delemontez (Societe Avions Jodel) in response to a French Government request for a low wing aircraft for use by French flying clubs (things have sure changed since!).  It was based on their earlier and very successful single seat D 9 with the fuselage being lengthened and widened from the D 9, and the wings being from the D 10 project (which was not built, but the wings were later used in the Robin DR 100).  The prototype first flew on 4/4/1950.

D 11's were license built by several European aircraft companies such as Wassmer, Aero Diffusion and Societe Aeronautique Normande (SAN) and various models with different motors were developed and named D 111 up to the  D 128.  Around 1500 D 11's were built by these manufacturers.  Plans were offered for homebuilders by Falconar of Canada, and in Australia by Frank Rogers, who named his model the D 11 Club.

The D 11 is 6.2 metres (20 feet 4 inches) in length, and its wingspan is 8.2 metres (26 feet 11 inches).  Empty weight is around 340 Kg (750 pounds) and MAUW is 616 Kg (1,358 pounds).  With an O-200 motor cruise is around 120 mph and the stall is around 30 mph.

By my reckoning we have had 35 D 11's built and flown in New Zealand (plus several other imported examples, and 2 Falconer aircraft).  The D 11 formed the backbone of the homebuilt aircraft fleet in New Zealand for around 40 years.

Our first D 11 was ZK-CKG (c/n F 3138) which was built from Falconar plans by Bruce Gillies, Jock McKenzie and Keven George of Kaikohe.  It was first registered on 1/7/66 and first flew in February 1968.  It is photo'd here at the 1972 AACA flyin at Masterton.

And here it is in colour at the 1981 AACA flyin at Mt Hutt.

It was sold to the George Courtney Syndicate of Kaikohe on 16/8/01, with whom it is still current.  I haven't seen it for many years, but a query to Jean 210 of this blog turned up this photo of ZK-CKG taken at Kaikohe recently by Bill Lambeth of the Dargaville Aero Club.  Thanks to Bill for the photo.

Our second D 11 was ZK-CVP (c/n AACA/57) which was built by Rex Thomson of Bunnythorpe (near Feilding aerodrome), and was first registered on 2/11/67.  It is also photo'd at the 1972 AACA flyin at Masterton.  It was sold to R Smith and DA Barrott of Paihia on 18/10/78.

And here it is in colour, also at the 1981 AACA flyin at Mt Hutt.

It was sold to PM Duncan and JR and D Brown of Temuka on 23/4/85, with whom it is still current.  It is photo'd here on 7/1/95 at Oamaru by Blue Bus.

And our third ZK-C registered D 11 was ZK-CZM (c/n AACA/83), which was built by Jan Mortensen of Dargaville and was first registered on 3/5/72.  (It was easier to keep track of the chronology of aircraft back then, when aircraft were registered in alphabetical order).  It is photo'd here at the 1973 AACA flyin at Omaka.

It was sold to the Central Hawkes Bay Aero Club on 14/9/78, and it id photo'd above in their ownership at the 1981 AACA flyin at Mt Hutt.

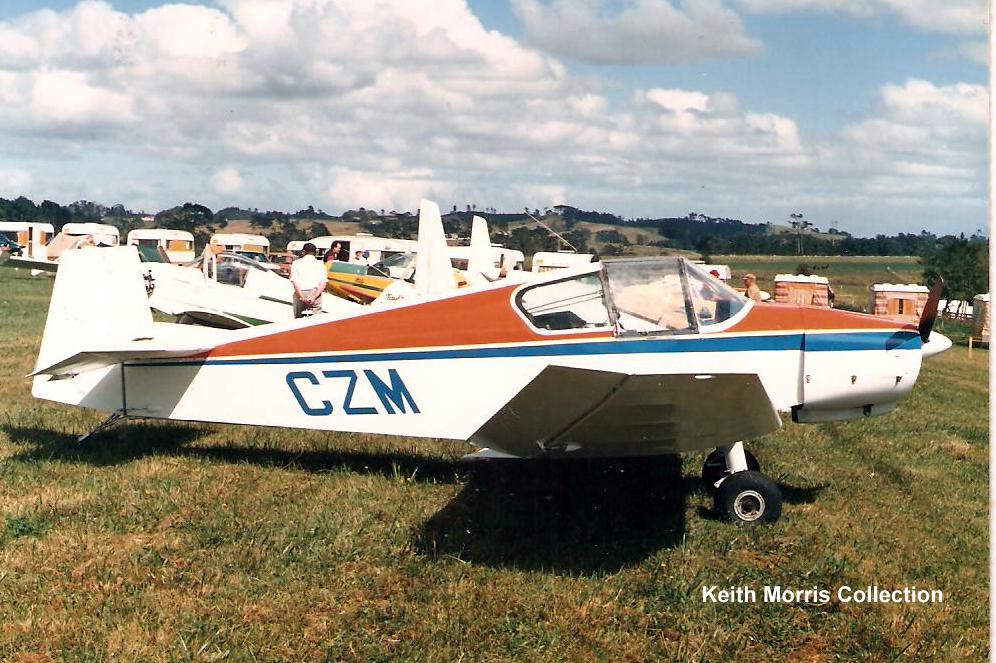

It was sold to S Fouhy of Eketahuna on 26/9/83 and it suffered damage in a couple of incidents, at Pahiatua on 1/2/84 and at Waimauku on 13/12/86.  It is photo'd here in his ownership at the 1988 AACA flyin at North Shore.  Finally it was sold to LRW Brown of Outram, with whom it is still current.


  1. Interesting factoid - D.11 ZK-CKG first flew (and may still) with the Continental A-65 taken from the well-traveled Ercoupe ZK-AQX which had been withdrawn from use at that time.

  2. Been digging around, ZK-CZM is actually Frank Rogers plan set D11-17. or the 17th set of english language Aussie D11 translations from the Jodel french plans.

    I have set D11-170 :D

  3. Hi.
    I sold a set of Franks D11 plans to a chap in NZ. a while back. I also have a un-used complete set of his D150 planes if anyone is interested. I bought these planes from Frank himself and I have documentation to show anyone interested in them.


    Adrian McShane,

  4. The original motor from ZK CKG was actually an A-75, which was later replaced with a Continental 100
